- Track surface finish changes across multiple runs to spot.
- Document spindle load and temperature at each inspection.
- Compare current measurements to baseline after any tool.
When you walk up to a machine that has been producing acceptable parts and suddenly the finish is wandering, the first thing you need is a clear handoff from the previous shift. I have seen too many mornings wasted because the night operator left a vague note saying "finish looks off." A structured handoff map saves everyone time. This article is written from the perspective of a machinist who has been on both sides of that clipboard. We will walk through what evidence needs to transfer between operator, technician, and planner so that the next person can act without repeating measurements. The goal is to turn a repeat finish drift into a predictable correction, not a guessing game.

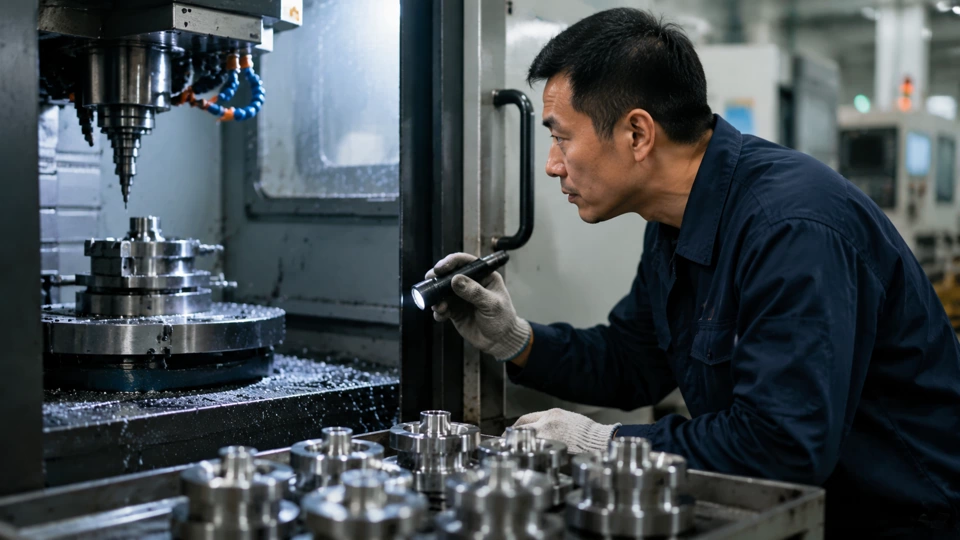

Operator Observations That Trigger the Handoff
Surface finish changes and tool condition notes
The operator is the first line of defense against finish drift. When I run a job that has been stable for weeks, I note the exact part number, the insert edge condition, and the coolant concentration at the time the finish started to change. In Ohio shops, where humidity swings can affect coolant mix, I have learned to record the coolant refractometer reading alongside the finish measurement. If the finish drifts by more than 0.2 Ra over three consecutive parts, I flag it immediately. The operator's log should include the spindle load percentage at the finish pass, because a jump of 5% or more often indicates the tool is wearing unevenly or the material hardness has shifted. I also note any audible changes, like a high-pitched squeal that was not there yesterday. That sound often precedes a bearing issue that will show up as a finish pattern.
When I hand off to the next shift, I include a photo of the worst part's surface taken under the same lighting. I have found that a visual reference beats a written description every time. The operator's note should also state whether the drift appeared suddenly after a tool change or gradually over several parts. A sudden drift usually points to a setup issue, while a gradual drift suggests wear or thermal growth. I always include the time of the last tool offset adjustment and the new offset value. If the drift started after I bumped the offset by 0.002 inch, that is critical information for the technician. Without that detail, the next person might chase a ghost in the spindle when the real cause is a simple offset error.
Technician Diagnostics Based on Transferred Evidence
alignment check and preload setup verification
When I receive a handoff from the operator, the first thing I check is the spindle alignment. I have a routine that starts with a test bar and a dial indicator mounted on the table. If the operator noted a sudden finish change after a crash or a heavy cut, I know to look for a shifted spindle. In one case, a machine that had been running fine for months suddenly produced a wavy finish. The operator's log showed a 3% spindle load increase and a faint vibration. I checked the alignment check and found it was 0.0005 inch out at the nose. That small misalignment was enough to create a repeat finish drift on a tight-tolerance bore. I corrected it with the alignment screws and the finish returned to spec. The operator's note about the load increase was the clue that saved me from tearing down the whole spindle.
Bearing preload is another common culprit. I have seen machines where the preload was set correctly at the last rebuild but drifted due to thermal cycling. The operator's temperature log, if they recorded it, is gold. I compare the current spindle housing temperature to the baseline from the last maintenance. A rise of 10°F above baseline often means the preload has increased, which can cause the spindle to grow and change the finish. I use a strain gauge tool to measure preload indirectly, but I always start by reviewing the operator's notes on warm-up time and coolant flow. If the operator reported that the finish improved after the machine ran for an hour, that is a classic sign of thermal preload shift. I then adjust the preload nut in small increments, usually 5 degrees at a time, and run a test part after each adjustment. The handoff from the operator telling me the drift pattern (e.g., a spiral mark every 0.010 inch) helps me decide whether to focus on the spindle or the tool holder.
Planner's Review for Process Stability
final measurement and process parameter correlation
As a planner, I look at the big picture. When I get a handoff from the technician that includes alignment check and preload data, I cross-reference that with the operator's finish measurements. I have a spreadsheet that tracks every finish drift event by machine, tool, and material lot. In Ohio, where we run a mix of cast iron and aluminum, I have noticed that finish drift is more common when we switch material suppliers. The operator's note about coolant concentration and the technician's runout inspection results help me decide whether to update the process sheet. For example, if the final measurement shows the tool holder is within spec but the finish still drifts, I might adjust the feed rate or add a dwell at the bottom of the bore. I always check the ANSI standards for surface finish measurement to make sure we are using the correct cutoff length and evaluation criteria. A common mistake is using a 0.030-inch cutoff on a part that needs a 0.010-inch cutoff, which can mask the drift.
I also review the maintenance history. If the same machine has had three finish drift events in six months, I schedule a full spindle rebuild rather than patching it each time. The handoff from the technician should include the exact preload value and the runout measurement at the spindle nose and at the tool holder. I compare those numbers to the machine's acceptance test report from when it was new. A runout that has doubled from 0.0001 inch to 0.0002 inch might still be within spec, but if the finish is drifting, I know the process is less robust. I then work with the operator to add a mid-run inspection point. For example, after every 50 parts, the operator measures the finish and records the spindle load. That data feeds back into the planner's spreadsheet, creating a closed loop. The goal is to catch drift before it produces scrap, and that only works if the handoff includes the right evidence.
Table: Handoff Map for Repeat Finish Drift
Shop note
| Handoff point | What transfers | Reason it matters |
|---|---|---|
| Operator to Technician | Surface finish trend, tool offset changes, coolant concentration, spindle load and temperature logs, part photos | Provides baseline for diagnostics; prevents re-measuring and focuses technician on likely causes like offset error or thermal growth |
| Technician to Planner | alignment check readings, preload setup adjustments, final measurement results, test bar measurements | Enables process stability analysis; identifies systemic issues like preload drift or misalignment that require process updates |
| Planner to Operator | Revised feed/speed parameters, added inspection points, material lot tracking, updated process sheets | Closes the loop; operator gets clear instructions for future runs, reducing repeat drift events |
Closing the Loop with Measured Cautions
Practical limits of handoff data
I have learned that even the best handoff cannot replace a careful inspection. The operator's notes might show a finish drift, but if the technician does not verify the alignment check under load, the data is incomplete. I always recommend that the technician run a test cut after any adjustment, even if the operator's log looks clean. In one case, the operator reported a finish drift that disappeared after a tool change, so the technician assumed it was a tool issue. But the drift came back three days later. The handoff had not included the fact that the machine had been running near its torque limit. The planner later added a torque monitoring step to the process sheet. The lesson is that handoff data is only as good as the context around it. I also caution against relying solely on final measurement at the spindle nose. The tool holder taper can introduce error that does not show up until the tool is cutting. I have seen a holder with a 0.0002-inch runout at the nose produce a 0.0008-inch runout at the cutting edge due to a dirty taper. The handoff should include a note about taper cleanliness.
Another caution is about thermal effects. In Ohio, the shop temperature can vary by 15°F between morning and afternoon. The operator's temperature log is helpful, but the technician should also check the spindle's thermal growth by running the machine at operating speed for 30 minutes before taking alignment readings. I have made the mistake of adjusting preload on a cold spindle, only to have the finish drift again when the machine warmed up. The handoff should include the time of day and the ambient temperature. Finally, I remind everyone that the ANSI standards for surface finish are a guide, not a guarantee. A part that measures within spec on a profilometer might still look unacceptable to the customer. The operator's visual inspection is a valid data point. The handoff map works best when all three roles—operator, technician, planner—treat each other's evidence as essential. That is how we turn a repeat finish drift into a solved problem.
This article is informational and reflects my experience on the shop floor. I hope these handoff practices help you reduce scrap and keep your machines running. — Nora Feldman Shop Notes, Machining Process Contributor.
